Platinum Winner of the International Architecture & Design Awards 2024

54 social Housing in Inca , Mallorca

Architecture

Eco-Friendly Building Design

Completed / Professional Category

blank
blank

Architect / Designer:

FORTUNY – ALVENTOSA MORELL ARCHITECTS

Studio:

FORTUNY ALVENTOSA MORELL ARQ

Design Team:

TEAM ARCHITECTS : JOAN FORTUNY, MARC ALVENTOSA , XAVIER MORELL
TECHNICAL ARCHITECTS : MARCO MENENDEZ , JAIME OLIVER
STRUCTURAL DESIGN : JUAN FORTUNY , LUIS GUASP, JOAN MAS
ENGINEERING : ESTUDIS D’ENGINYERIA DE LES ILLES
INITIAL PROJECT : CARLOS MERI
COLABORATORS : MARINA MOREY , GORI LAMBIAS , SANDRA VARGAS

Copyright:

JOSE HEVIA

Country:

Spain

The proposal attends three fundamental aspects: the correct insertion of the building into the urban and physical environment, the synthesis of the functional aspects of the program (54 social housing units and interior common space) and a very efficient building (NZBE) developed with low carbon emissions .

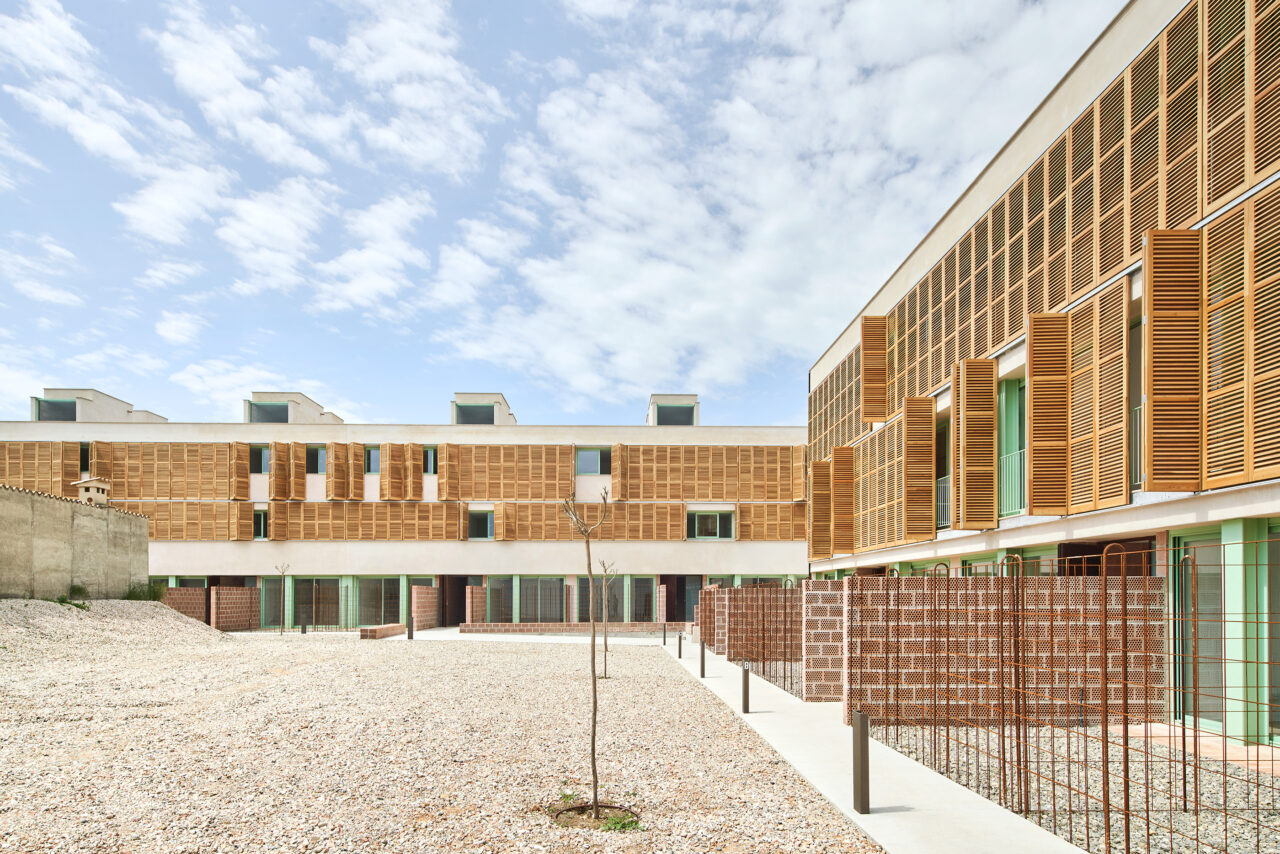

The building is organized along a north-south axis with two independent, compact and nice orientated volumes to the sun and summer breeze, generating a public space between them.
The housing module is organized around a central wet core that defines two areas with double orientation. The location of the day and night areas varies in height, generating different types of housing per floor.

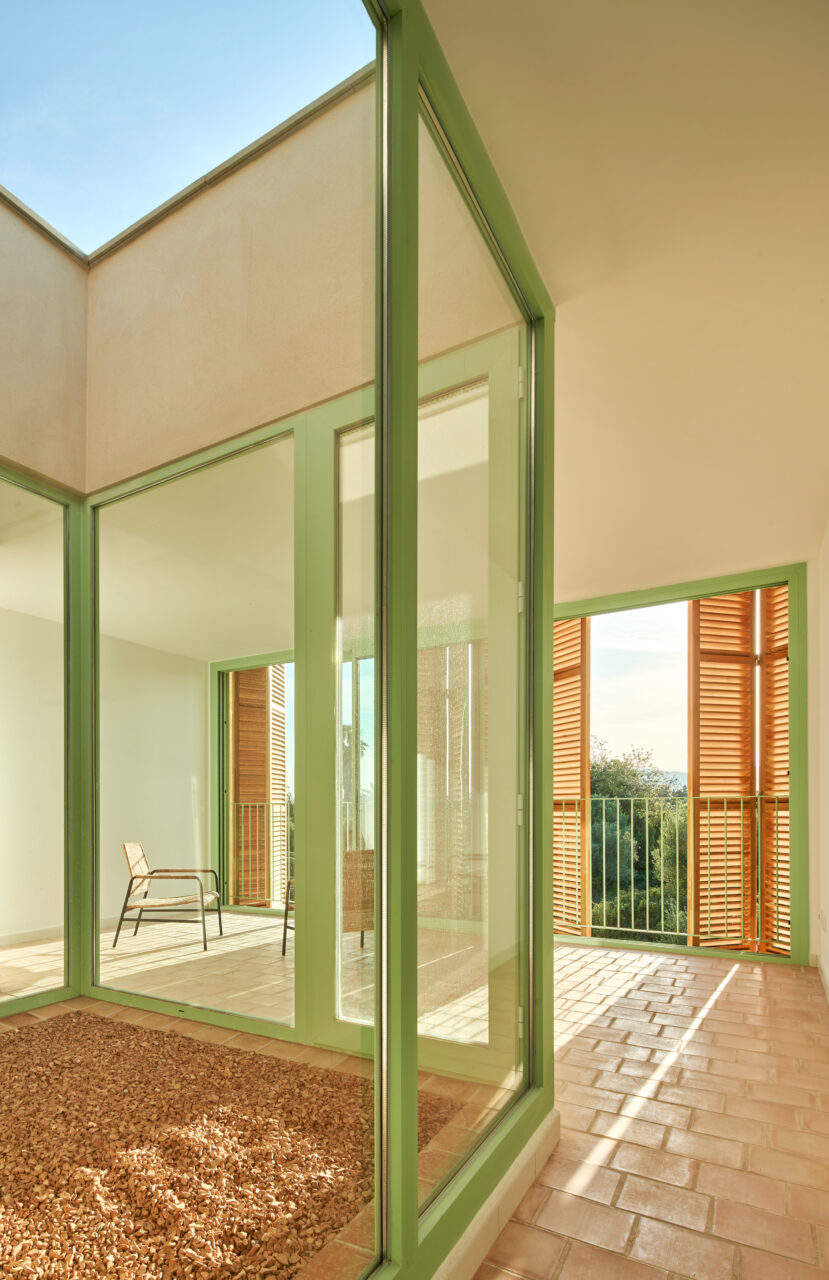

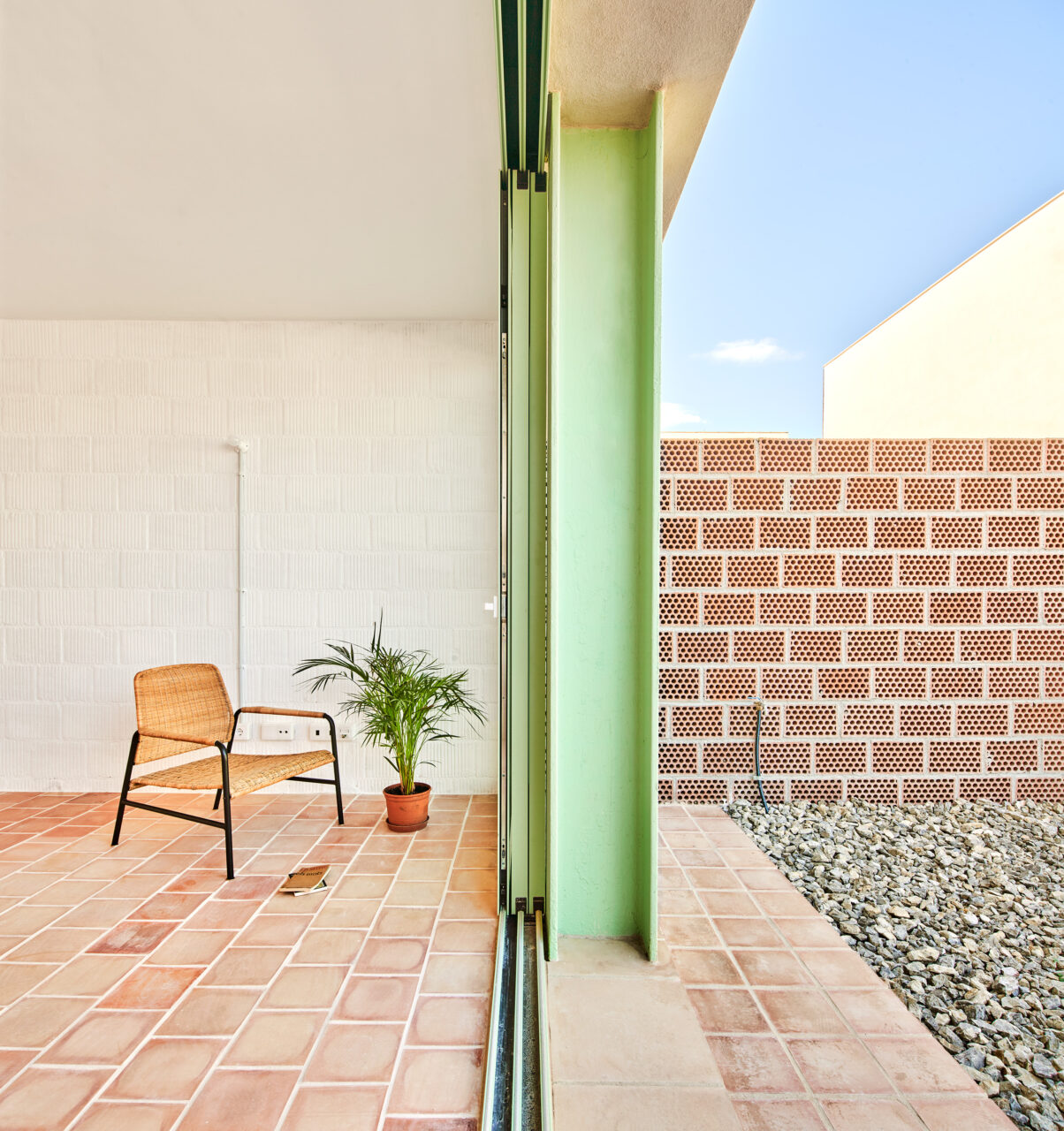

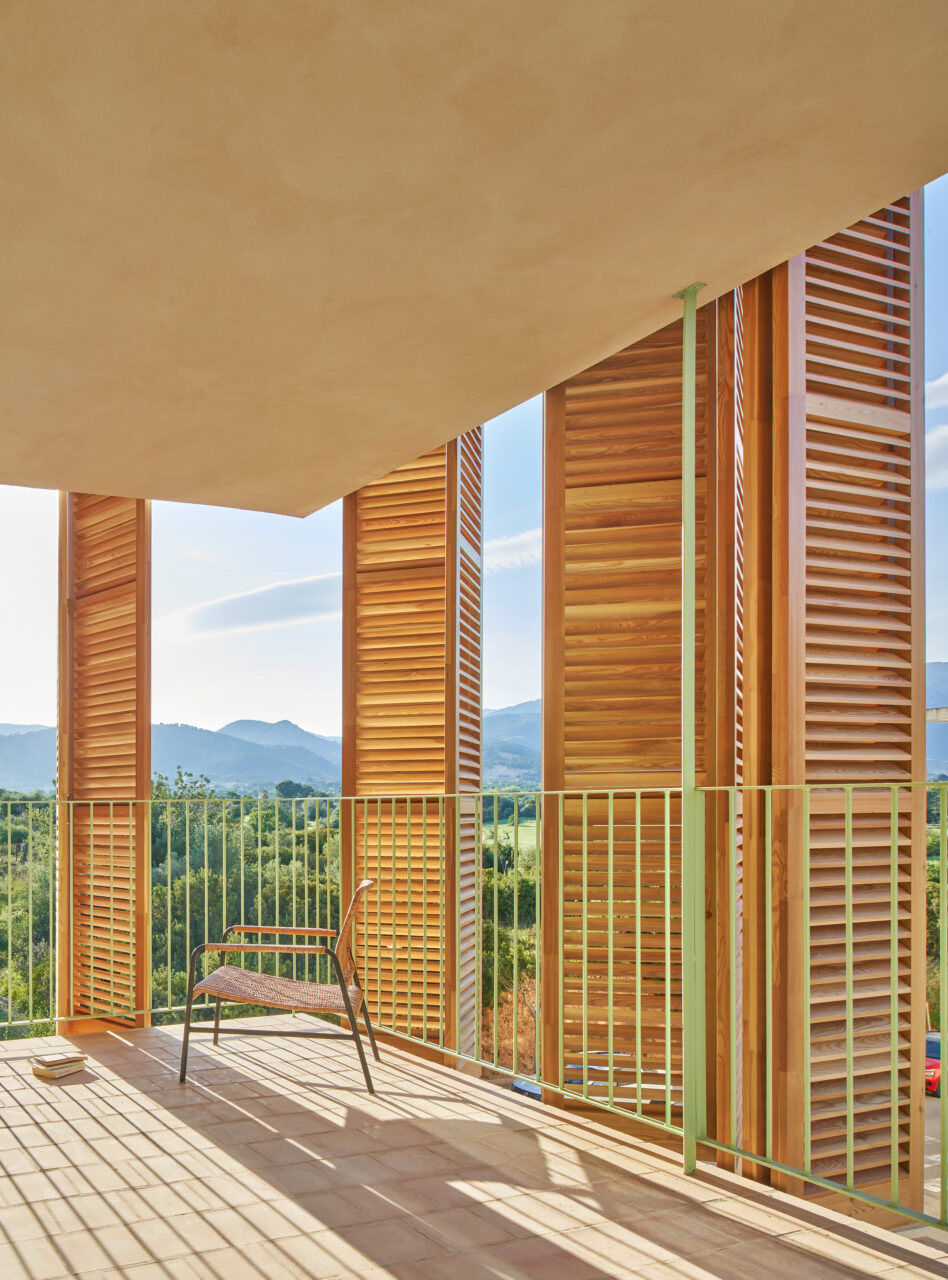

The homes have cross ventilation and outdoor spaces: a private garden on the ground floor, terraces and patios on the successive floors, which will allow the excess of summer heat to be regulated through passive strategies.

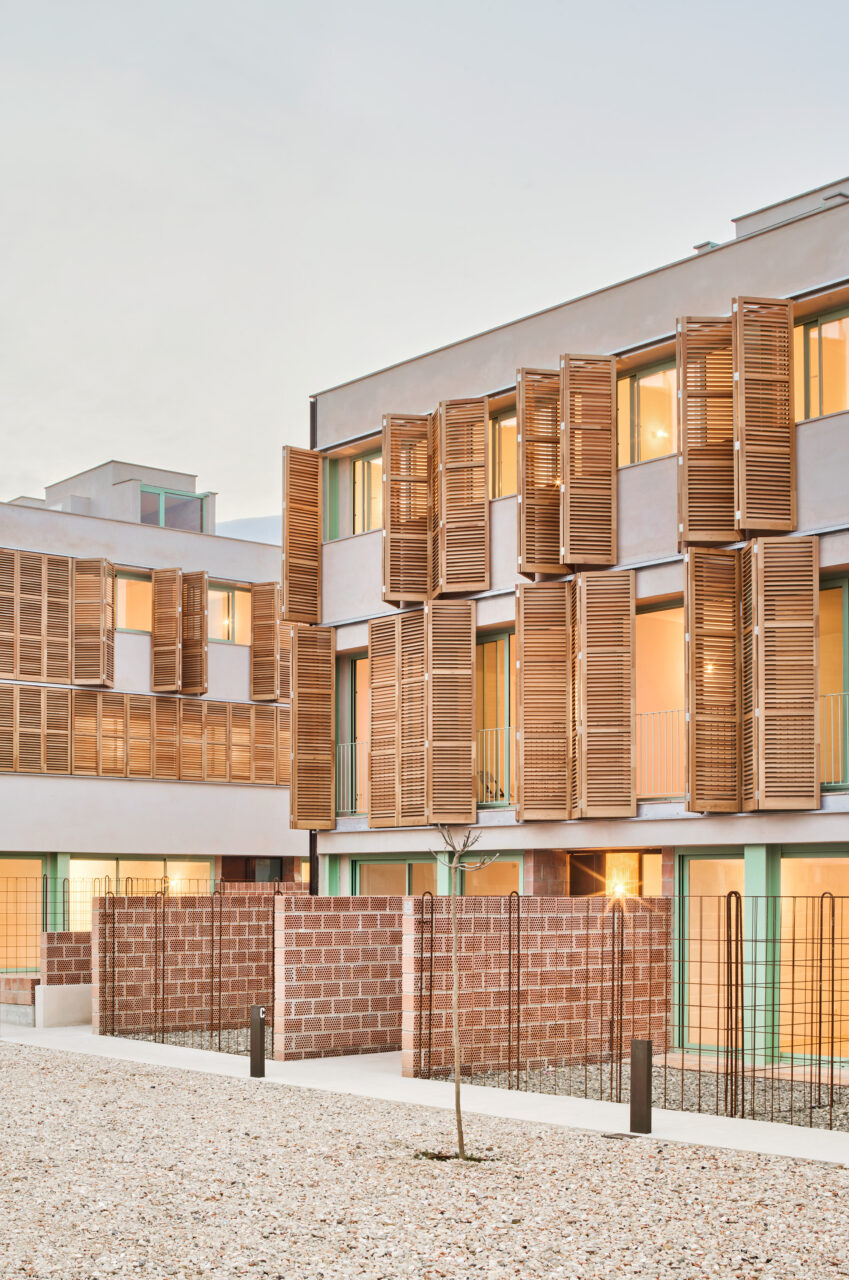

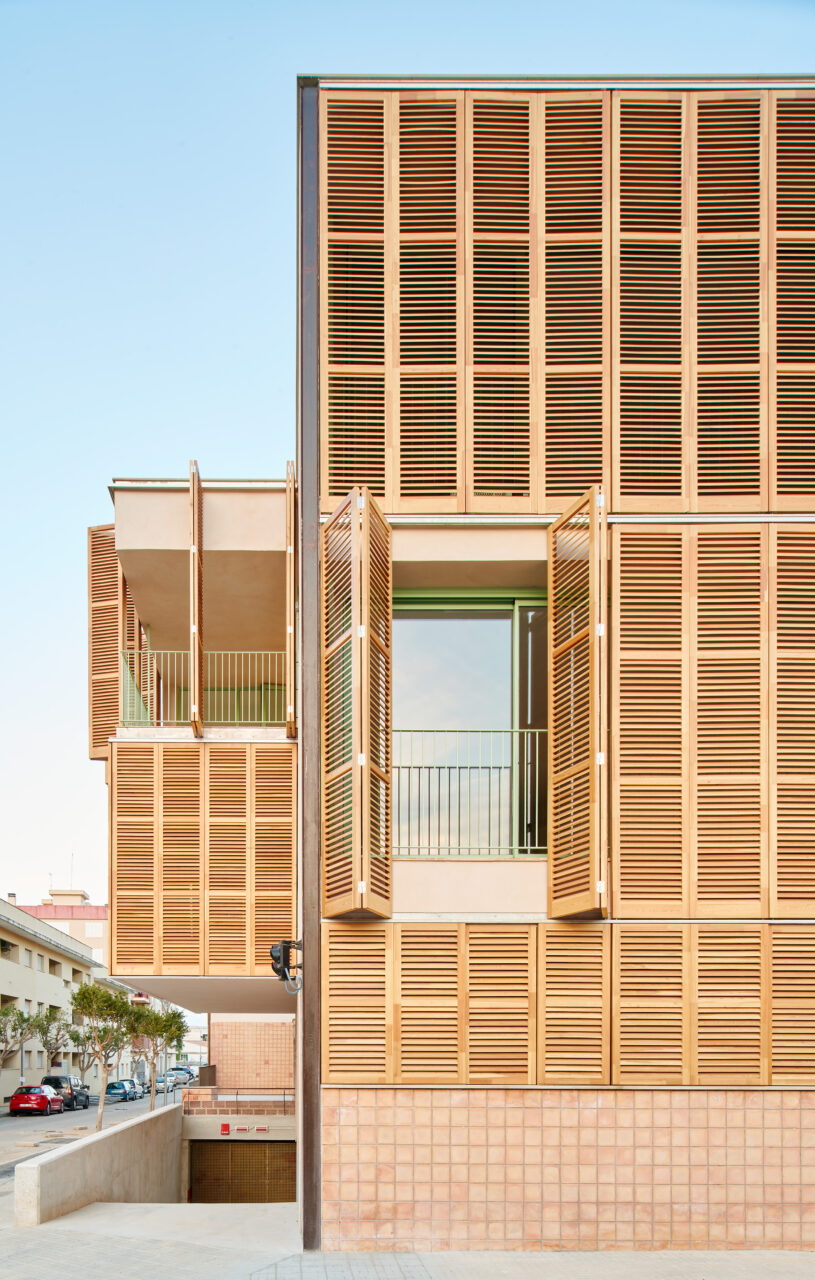

The façade is resolved by a double ceramic sheet with recycled cotton insulation and externally, it is resolved with exterior insulation using projected cork and lime coarse developed by local companies, the solar protections made of larch wood (FSC) manufactured by local artisans
The interior floors are clay ceramics cooked with biomass, and lime paint is applied directly on the ceramic walls to give hygroscopic capacity and inertia to the homes. all those materials are local products manufactured on the same island (KM0)
The ACS is produced thanks to a NUOS Aerothermal system with very low consumption and high performance. The ventilation of the homes is resolved by means of heat recovery that temper the air thanks to community Aerothermal systems.
The result of this process is a building with practically zero consumption (0.64 kWh/m2 x year ‘NZBE’) developed from a local economy model, passive strategies and with naturally healthy materials.

Investigation creates a new standard that solve the housing emergency and the climatic emergency.

The proposal attends three fundamental aspects: the correct insertion of the building into the urban and physical environment, the synthesis of the functional aspects of the program (54 social housing units and interior common space) and a very efficient building (NZBE) developed with low carbon emissions .
The building is organized along a north-south axis with two independent, compact and nice orientated volumes to the sun and summer breeze, generating a public space between them.
The housing module is organized around a central wet core that defines two areas with double orientation. The location of the day and night areas varies in height, generating different types of housing per floor.
The homes have cross ventilation and outdoor spaces: a private garden on the ground floor, terraces and patios on the successive floors, which will allow the excess of summer heat to be regulated through passive strategies.
The façade is resolved by a double ceramic sheet with recycled cotton insulation and externally, it is resolved with exterior insulation using projected cork and lime coarse developed by local companies, the solar protections made of larch wood (FSC) manufactured by local artisans
The interior floors are clay ceramics cooked with biomass, and lime paint is applied directly on the ceramic walls to give hygroscopic capacity and inertia to the homes. all those materials are local products manufactured on the same island (KM0)
The ACS is produced thanks to a NUOS Aerothermal system with very low consumption and high performance. The ventilation of the homes is resolved by means of heat recovery that temper the air thanks to community Aerothermal systems.
The result of this process is a building with practically zero consumption (0.64 kWh/m2 x year ‘NZBE’) developed from a local economy model, passive strategies and with naturally healthy materials.

Investigation creates a new standard that solve the housing emergency and the climatic emergency.

FORTUNY ALVENTOSA MORELL ARQ

At FAM Arquitectes we specialize in designing and building efficient NZEB buildings, based on bioclimatic studies and thermal analyzes that provide us with energy savings of over 70% compared to a conventional building.

The aim is to reduce economic costs and increase user comfort (thermal performance, acoustics, breathability, etc.) through design strategies comparable to the passivhaus standard. We use low ecological and healthy footprint materials.

We have experience in residential, school, healthcare, hotel architecture, rehabilitation of listed buildings and budget management for optimal economic efficiency of the work.

Our philosophy, apart from working with efficient buildings, tries to give customers solutions that correspond to their needs. For this reason, the design is fully integrated into the program, budget and deadlines that each project requires.
