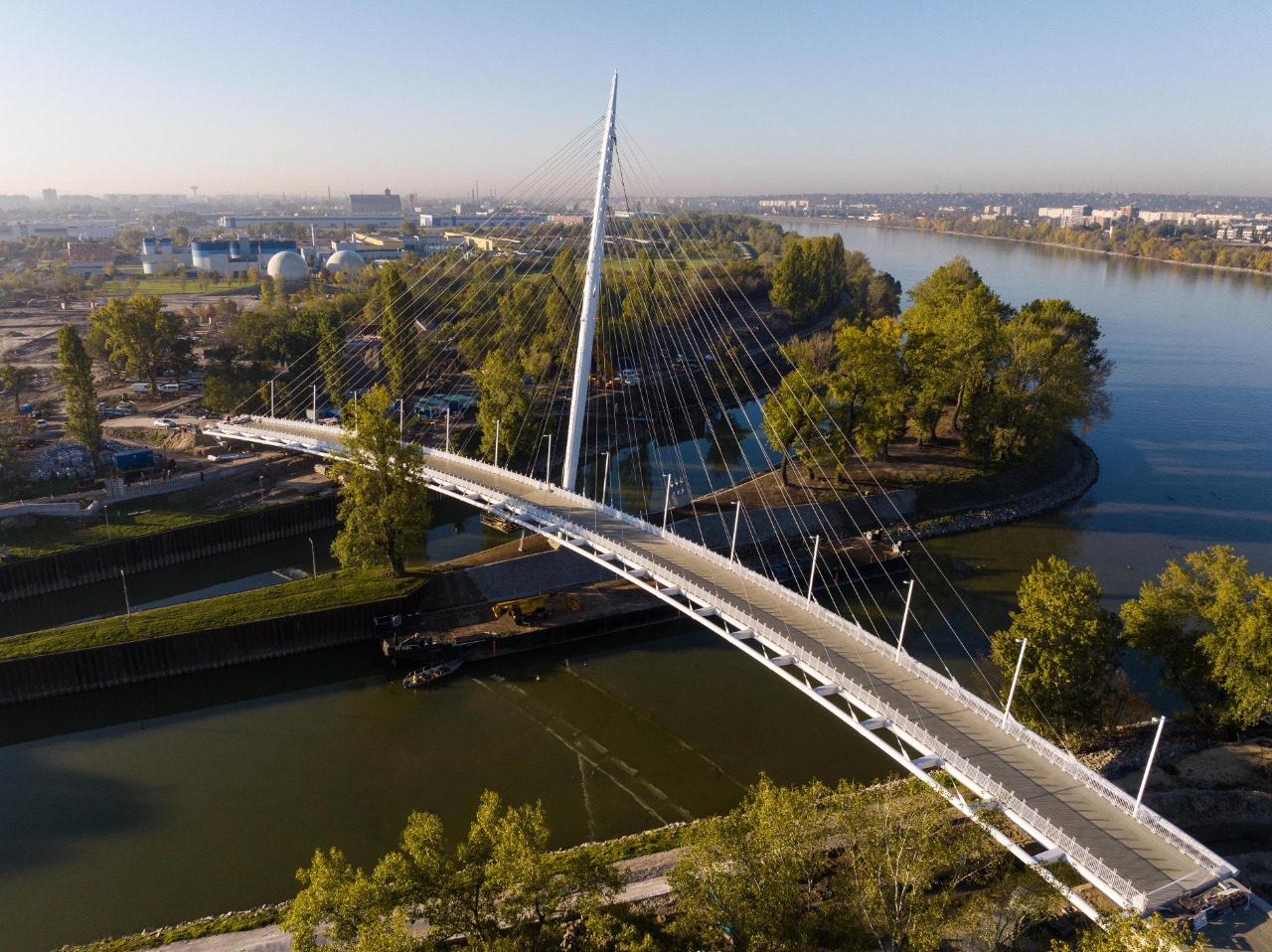

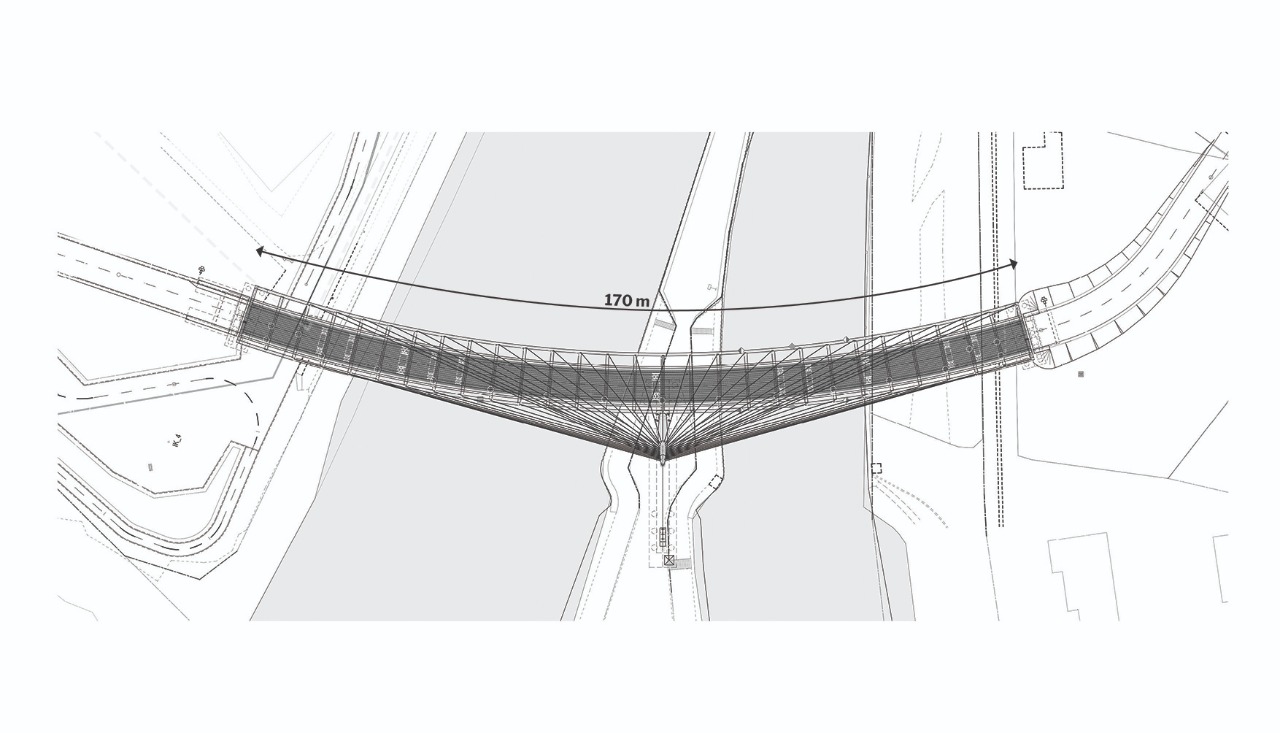

The 170 m long Robinson Bridge with its 65 m tall pylon is a newly built pedestrian and cycle bridge at the confluence of the Danube and its branch in Budapest. It creates a key connection along the Danube waterfront between the city centre and Csepel Island.

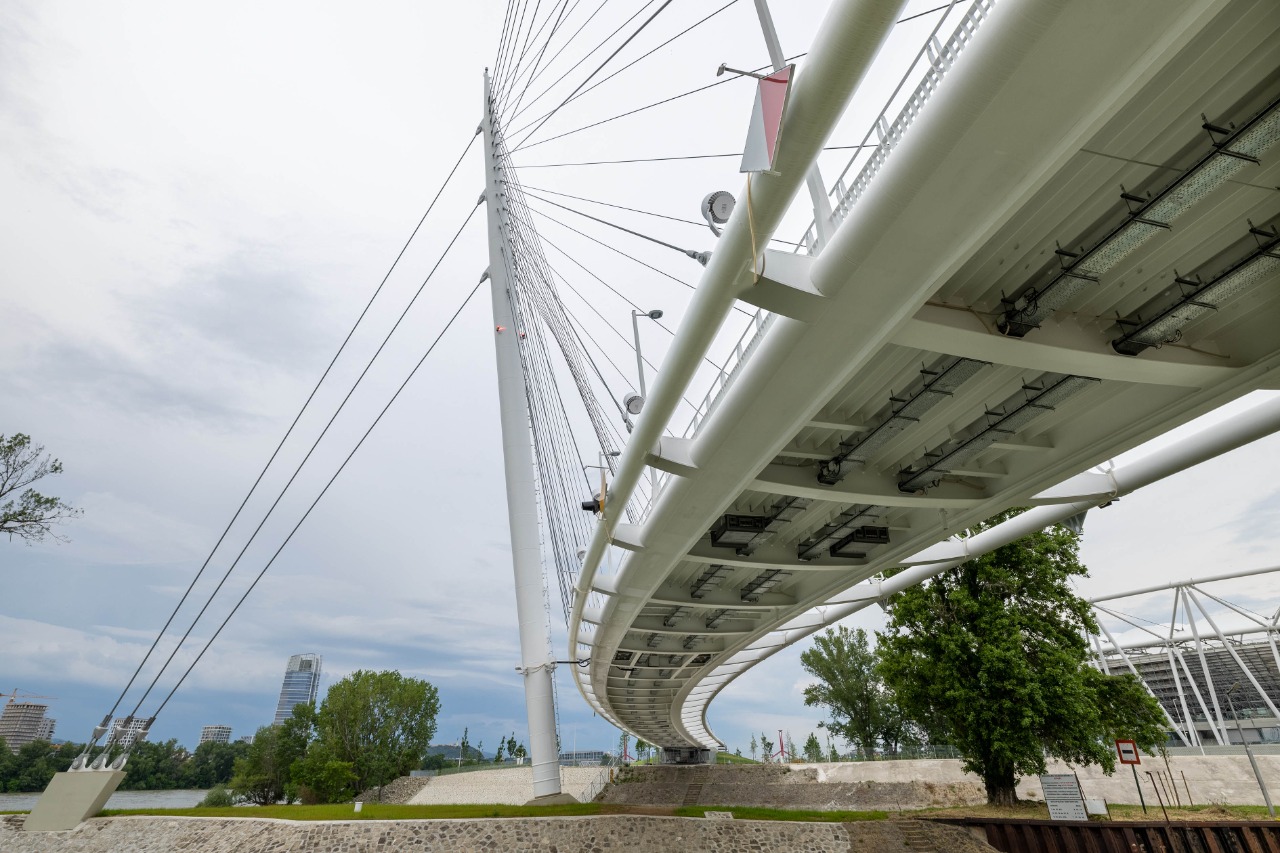

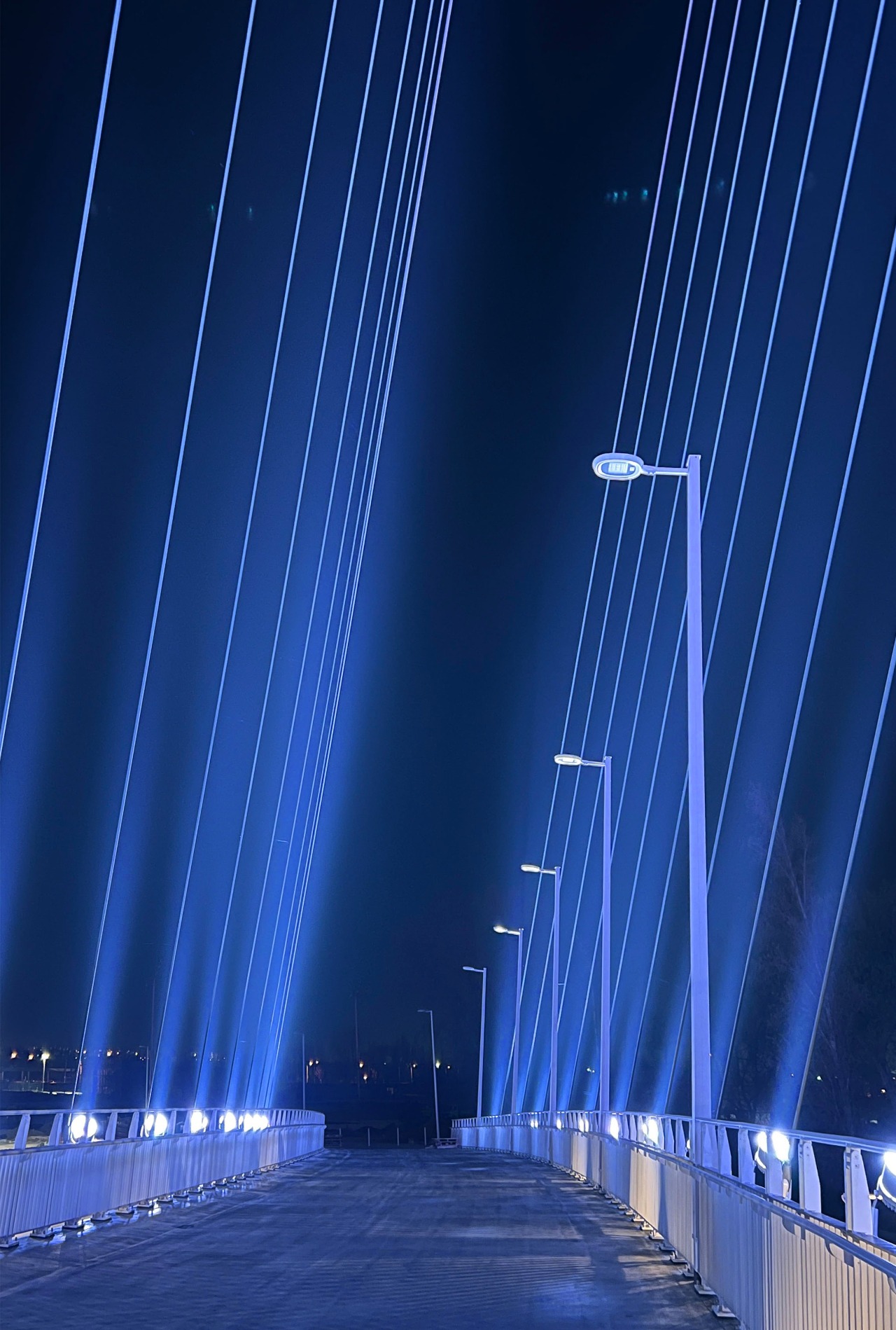

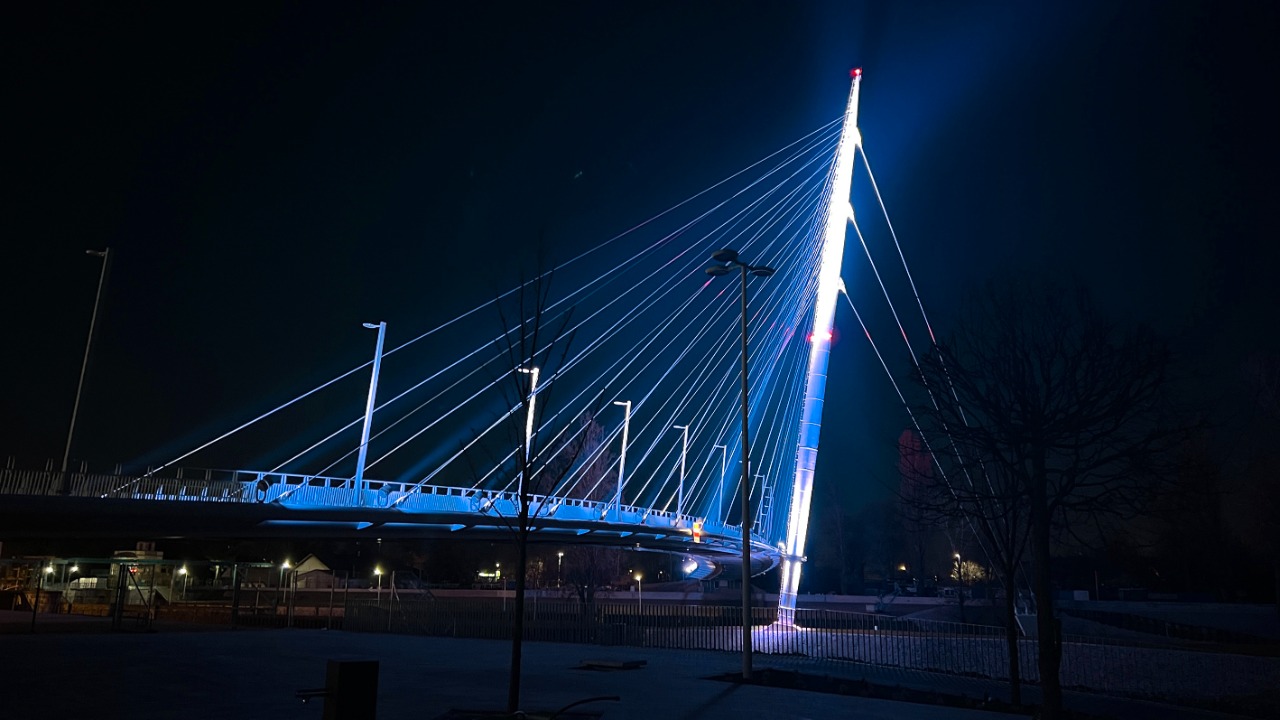

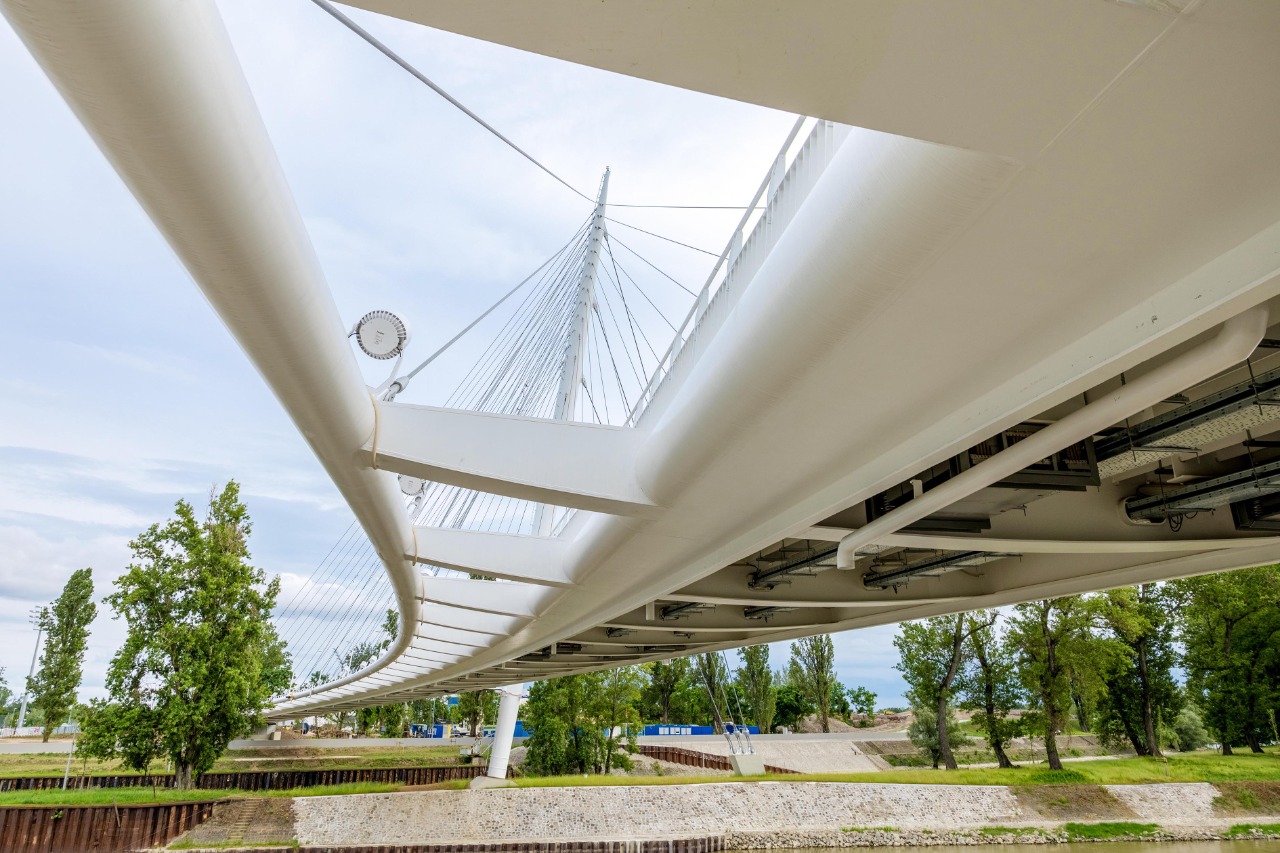

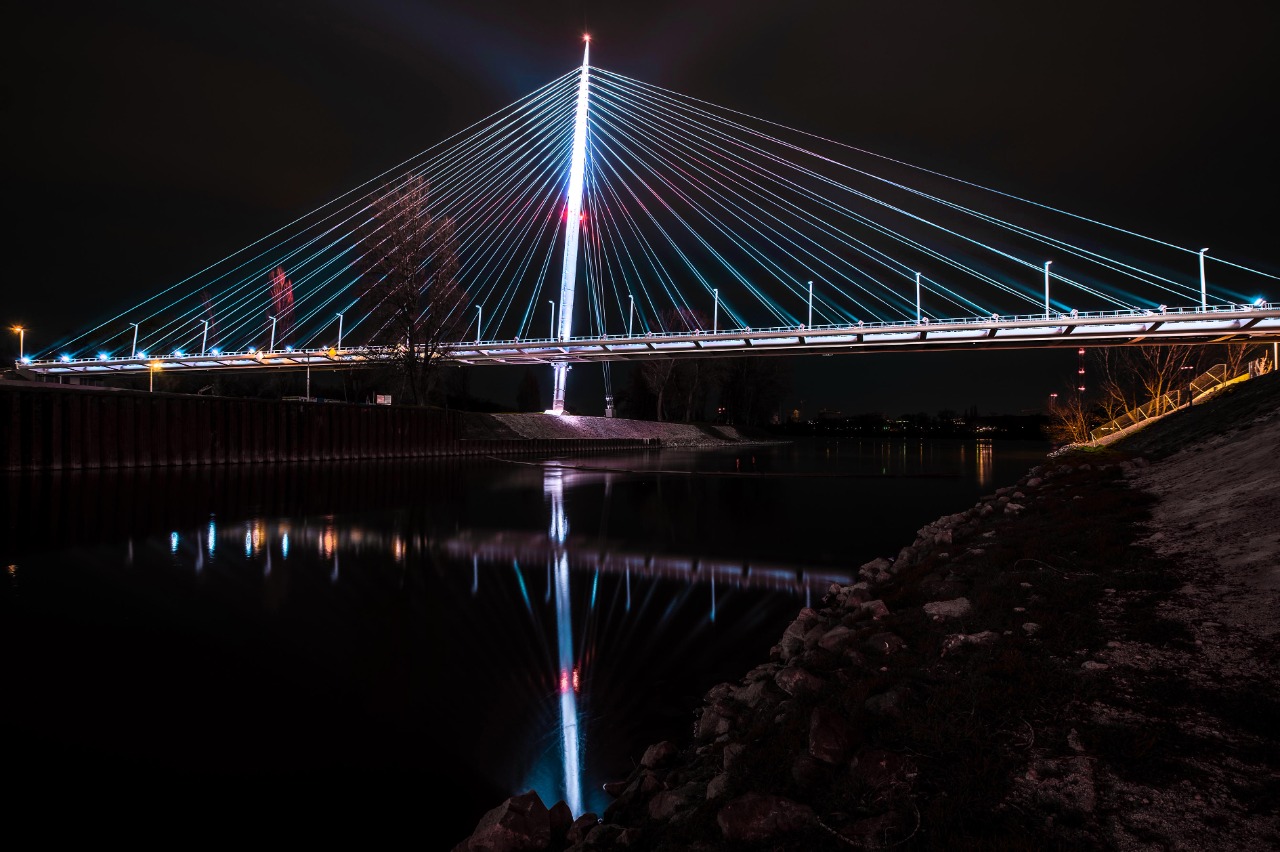

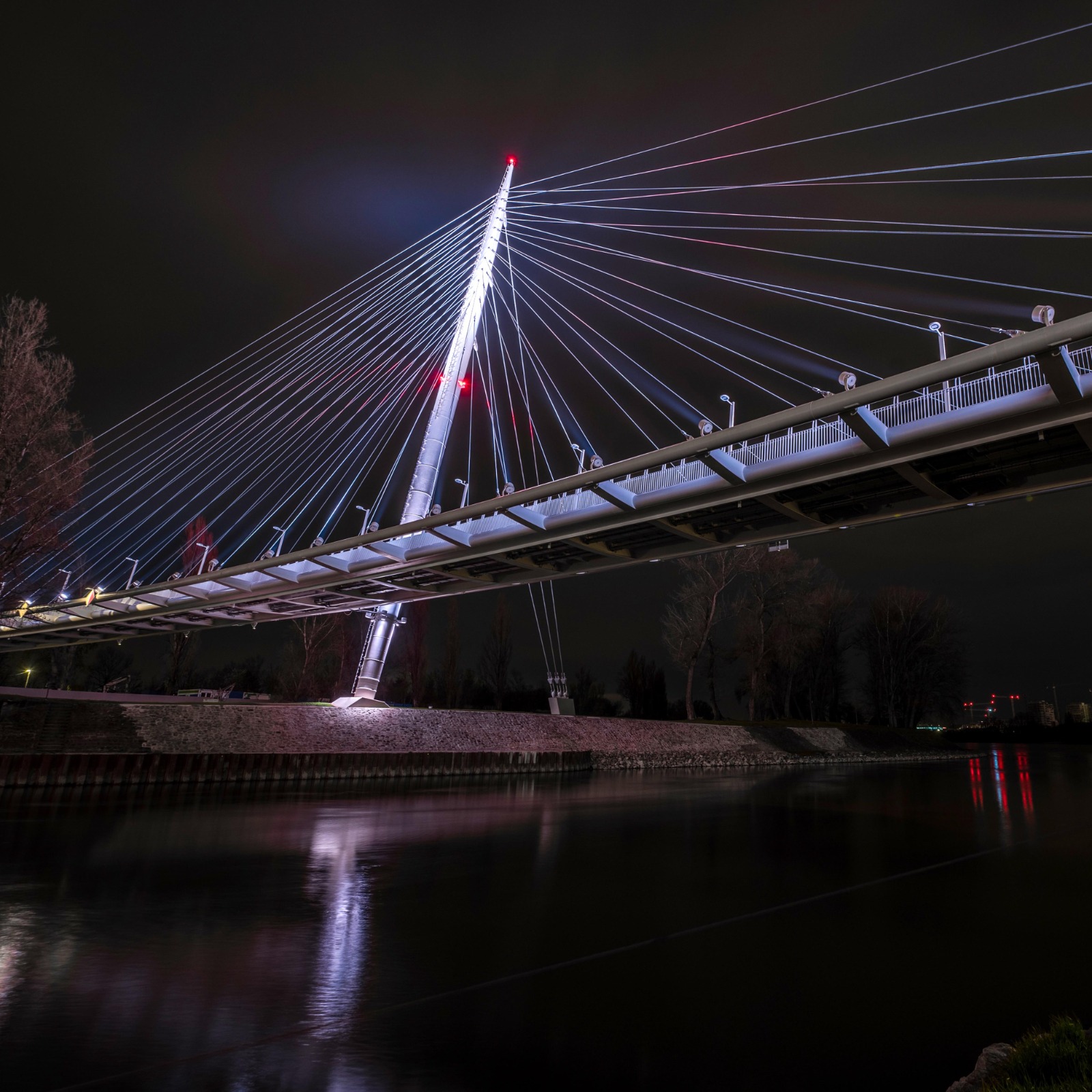

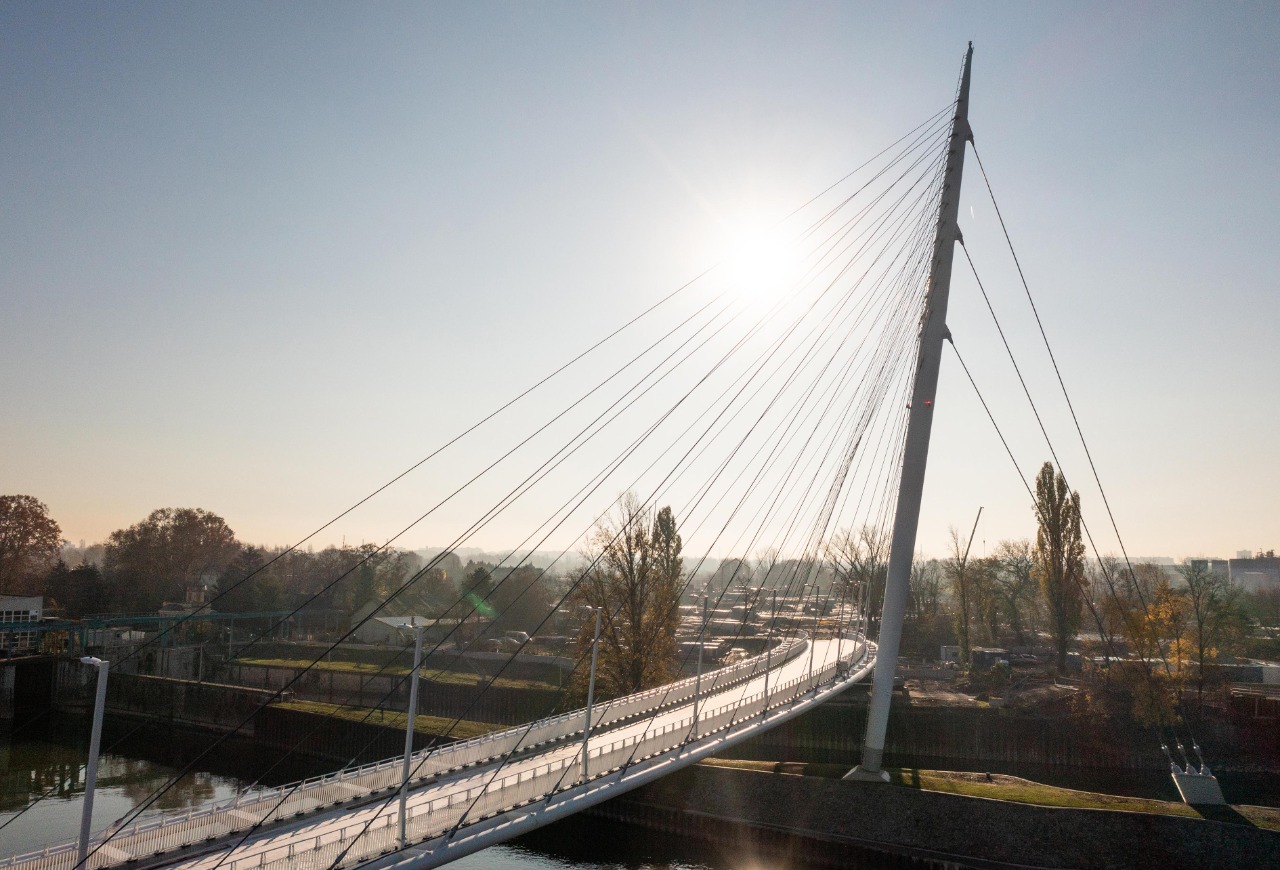

The design brief was straightforward – to create an outstanding, elegant structure. The bridge responds with a form that radiates lightness. A single, needle-like inclined pylon rises from a small uninhabited islet in the river. A transparent network of 53 full-locked coil cables suspends the slender deck without any intermediate support. The defining structural feature of the bridge is that the deck does not bear on the pylon island at all – the entire 170 m superstructure floats above the water, held solely by its cable system. Seen from below, a 900 mm deep deck hovers with an almost surreal slenderness over the river. The superstructure follows the river’s natural bend, highlighting the Danube as Budapest’s most significant natural asset. Crossing the bridge offers an ever-changing spatial experience: seen head-on, it appears as a slender gateway; from the side, it reads as an elegant cable-stayed silhouette; while walking across, the curved deck weaving through the cable fan produces a constantly shifting perspective. At night, architectural lighting on the cables and the needle-like pylon transforms the bridge into a luminous landmark on the Danube.
The structure is a two-support, single-pylon, cable-stayed bridge with a steel stiffening girder and orthotropic deck plate. The total deck width is 12.70 m with Ø610 mm steel edge beam tubes on either side – connected as extensions of the cantilevered crossbeams – carry cable anchorages outside the walkway, ensuring unobstructed pedestrian clearance on the curved plan. The interior of the pylon and box sections of the deck were filled with concrete; this composite steel-concrete action increases load-bearing performance and durability while significantly reducing material use and embodied carbon. The 7.00 m clear walkway accommodates cyclists, pedestrians and small electric event vehicles, while 12 tuned mass dampers ensure the strictest pedestrian comfort level. The bridge was designed in close coordination with the architects of the adjacent National Athletics Stadium – both structures share a visual language of white steel tube elements, ensuring the slender bridge complements rather than competing with the massive stadium volume.
Construction presented exceptional challenges. The 200-tonne pylon was lifted in a single operation, requiring prior riverbed dredging and hydrographic survey. The 750-tonne steel deck was incrementally launched in 15 stages on temporary supports, followed by cable tensioning in nearly 60 sequential steps.
Beyond its structural merit, the bridge has catalysed the regeneration of a formerly neglected brownfield zone, making the island’s northern tip freely accessible to the public for the first time.
